Truck & Bus
Camera Monitor Systems
Smart-Vision®
Replace traditional mirrors in buses and trucks with fully integrated high definition exterior cameras and interior cab displays, expanding visibility to and improving the driver experience for safer vehicle operation.
Smart-Vision® combines state of the art hardware and superior image quality allowing operators to drive with confidence as blind spots are mitigated, fatigue from eye strain is reduced, and maneuvering and overtaking is made easy and stress free in shifting weather and lighting conditions.
Smart-Vision®
Tried & Tested
- Fully homologated as per UNECE standards
- 15,000+ vehicles equipped
- 51 bus and truck OEMs who have chosen our solution
- 100 operators enjoying our CMS
- 200 types of vehicles homologated
Camera replacing mirrors on vehicle exterior

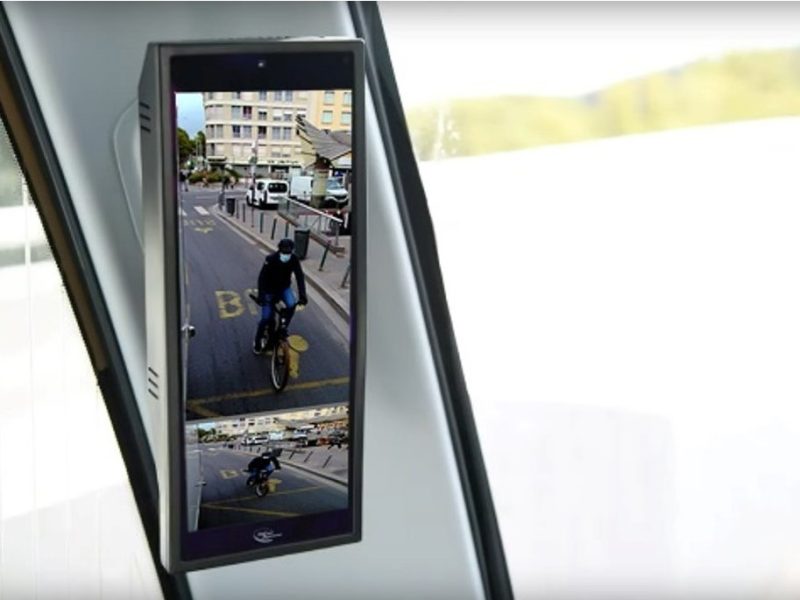

High Definition Interior Displays
- High image quality in extreme weather/lighting conditions (e.g. fog, rain, night & tunneling)
- Wider field of view than regulations
- Automatic screen brightness adjustment, no glare
- Maneuvering and guiding aid
- Class 2 & 4 as a base. Class 5, 6 and A pillar view as premium options
- Real time depiction of actual circumstances
- Aerodynamic design
- Optimize visibility
- Reduce blind spots
- Reduce driver fatigue associated with eye strain
- Enhance driving comfort and confidence
- Part of a “zero accident” approach
- High ROI: reduced energy and fuel consumption, low maintenance costs, optimized vehicle uptime
- Reduce environmental impact
Smart-Vision® provides extended visibility exceeding UN regulation, enabling blind spot mitigation in multiple classes
Smart-Vision® is the first of its kind, able to be retrofit to existing fleets or offered as original equipment to OEMS
Smart-Vision® is customized to meet the specific requirements of key commercial vehicle types
Truck Specifications
- Camera automatically or manually calibrates to truck’s trailer dimensions
- A camera arm that adapts to meet cabin and trailer dimensions
- Screen size meets truck specifications of up to 15”
- Compliance with current and future security regulations for blind spot and moving off systems
- Maneuver mode with zoom and field of vision adaption for easier docking
- Aids for rear maneuvering, overtaking, and insertion
Bus & Coach Specifications
- Cameras cover Classes 2/4, 2/5, 5/6, & BSIS
- Waterproof camera module (IP69)
- Patented camera heating and cleaning system
- Customizable wing design, cover and fixing parts designed by Safety Tech or customer
- Enhanced night vision capabilities for improved visibility in low-light conditions
- Real-time alerts for lane departure, pedestrian detection, and forward collision avoidance
Our Expertise at your Service
Our customer support services are available locally through our teams and our network of integrators.
Assistance with vehicle certification:
- Products already approved by certification agencies
- Administrative support
- Installation on the vehicle
- Positioning of cameras for optimized field of view
- Field-of-view settings compliant with current regulations
- Camera settings to guarantee high-quality images
Reduce accidents, save lives, and increase ROI
- +115% distance run between two accidents
- 60% cut in accident costs
- 80% savings on consumed material
- 38% reduction in maintenance costs
Figures from TPG operator
Certified Safety
The Smart-Vision® camera system is a safety leader. It was the first to gain UTAC’s worldwild approval in 2017. It is R46, R10, R118 homologated but also IATF and ISO 26262 certified. In the USA, it can replace conventional mirrors, as Federal Motor Carrier Safety Administration (FMCSA) granted its exemption approval .
R46
In 2017, Smart-Vision® became the inaugural camera monitor system to receive R46 homologation, underscoring our commitment to upholding stringent global standards in vehicle safety.
ISO 26262
Safety Tech and its Smart-Vision® have held ISO 26262 certification since 2017, guaranteeing the implementation of a standard that assures the functional safety of electrical/electronic systems in automotive vehicles.
IATF
Committed to delivering automotive excellence with the highest standards of quality and safety, Safety Tech is IATF certified for the compliance of its quality management system
FMCSA & CCMTA Exemptions
Gauzy Safety Tech was granted an exemption to install camera monitor system, Smart-Vision®, in substitution for traditional mirrors in Canada and the USA.
Make your system smarter by integrating SafetySide into your Smart-Vision® solution for a comprehensive product without component redundancy
"After driving urban buses for years and now training drivers at AFTRAL, I was blown away by Gauzy's Smart-Vision® solution. It truly enhances visibility and safety, making the driving experience much more comfortable and secure."
- Christophe Nogueira, Urban Bus Driver and Instructor at AFTRAL
Speak to a CMS Expert at Safety Tech Today
FAQ
Questions and Answers
A CMS, or Camera Monitor System, is an advanced safety feature for trucks that replaces traditional side mirrors with high-definition cameras and high-resolution displays. This system enhances visibility by capturing blind spots and offering an extended, clearer view around the vehicle, ultimately improving safety and reducing the risk of accidents involving pedestrians and vulnerable road users (VRUs).
By providing a broader perspective, the CMS helps mitigate blind spots. Internal monitors, which are protected from rain and steam, display real-time images from the HD cameras, ensuring a clear view. The primary risk of accidents for trucks typically arises from interactions with other vehicles and VRUs
Integrating a CMS into trucks brings numerous advantages over traditional mirrors. These include:
- Superior Visibility: CMS provides clear views in various weather and light conditions, ensuring drivers have a comprehensive understanding of their surroundings.
- Elimination of Glare: Traditional mirrors often suffer from glare, but CMS completely eliminates this issue, offering a consistent and crisp view.
- Reduced Blind Spots: With cameras replacing traditional mirrors, CMS offers extended views and significantly reduces blind spots, as well as enhances overall safety.
- Improved Aerodynamics: Replacing bulky mirrors with sleek cameras can improve the vehicle’s aerodynamics, particularly efficient for long distances.
- Enhanced Safety and Driver Comfort: All these benefits, not to mention enhanced ergonomics and reduced driver fatigue, contribute to a safer and more comfortable driving experience, making CMS a valuable addition for fleet operators.
Absolutely! Gauzy’s CMS can be retrofitted to a wide range of existing trucks. We offer comprehensive assessments and customized installation plans to ensure that the CMS delivers optimal performance and safety enhancements for your fleet.
Please note: Other CMS providers in the market might not retrofit onto existing truck fleets.
The CMS improves safety by significantly reducing blind spots, providing real-time, high-quality video feeds of the vehicle’s surroundings. This allows drivers to detect other vehicles and vulnerable road users more effectively. Additionally, the CMS offers better visibility in low-light conditions and adverse weather, which are critical factors in preventing accidents and ensuring safer driving.
Yes, Gauzy’s Camera Monitor System (CMS) is fully compliant with both North American and European regulatory standards, such as UN ECE Regulation R46 . Our system meets all necessary safety and performance requirements, ensuring that it is a reliable and legal replacement for traditional mirrors on trucks in these regions.
Our Camera Monitor System offers several key features:
- High-definition cameras for clear, extended views
- Real-time video feeds displayed on internal monitors
- Enhanced visibility in low-light and adverse weather conditions
- Reduced blind spots for improved safety
- Compliance with US and European safety regulations
The installation process for our Camera Monitor System is straightforward and typically involves the following steps:
- Removal of traditional side mirrors and internal rearview mirror.
- Installation of high-definition cameras at strategic points on the exterior of the vehicle.
- Mounting of the internal monitor(s) inside the vehicle.
- Integration of the system with the vehicle’s electrical networks.
- Calibration and testing to ensure optimal performance and compliance with safety standards.
Our professional installation team ensures minimal downtime and maximum safety during the installation process.
Fleet operators can expect numerous benefits from using a CMS, including:
- Enhanced safety for drivers and vulnerable road users
- Reduced accident rates and associated costs
- Improved driver confidence and comfort
- Compliance with modern safety regulations
- Potential insurance premium reductions due to improved safety features
- Lower maintenance costs compared to traditional mirrors, which can be prone to damage and require frequent adjustments
Gauzy’s Smart-Vision® Truck CMS system includes several key features:
- Lightweight and Aerodynamic Design: Optimized for improved efficiency.
- Auto-Adjusting Screen Brightness: Ensures visibility in various lighting conditions.
- Additional Cameras: Provide multiple panning views for both forward and backward motion.
- Real-Time Audio-Visual Alerts: Integrated displays support BSIS and MOIS regulations for enhanced safety.
- Surveillance and Screening Mode: Offers OEM recording capabilities for comprehensive monitoring.
